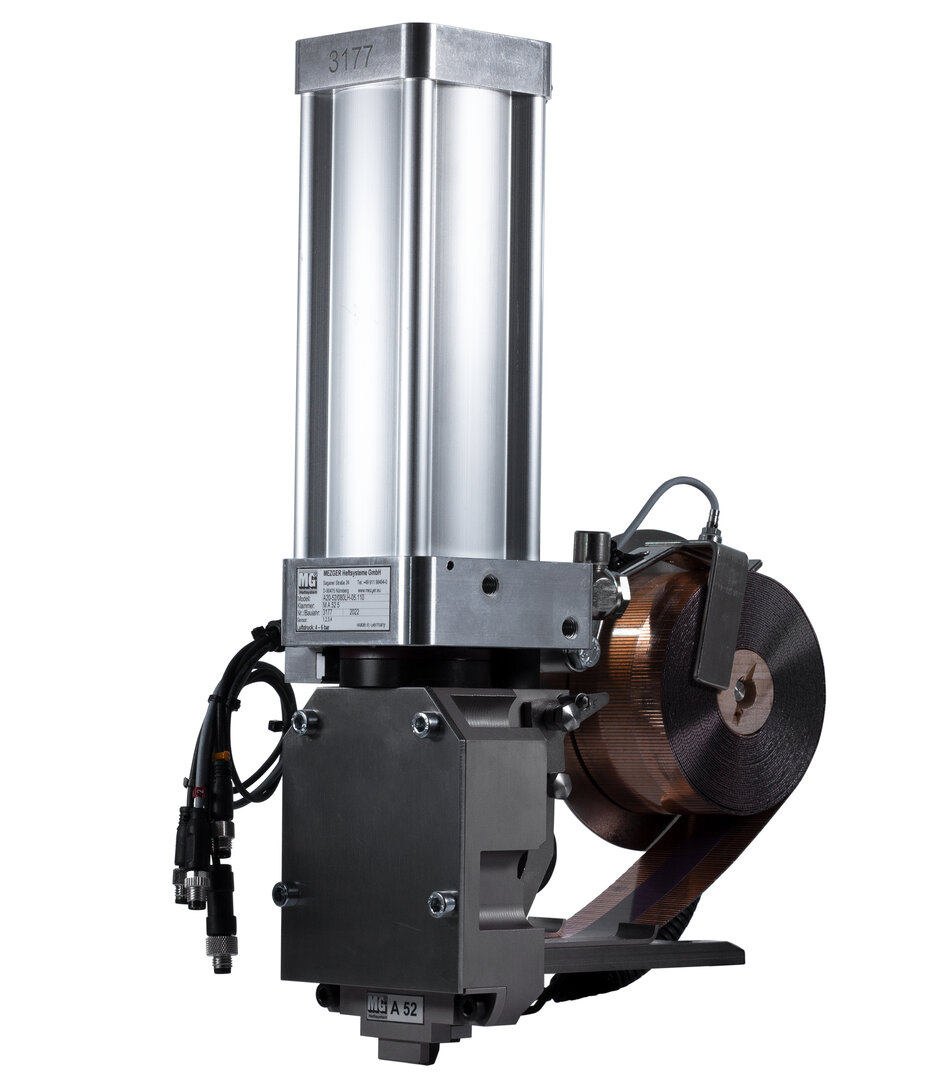

A 20 Mezger® Stapling Head System
Product only available in: United States, Mexico
Complete pneumatic nailing or stapling unit with an automatic feed travel for stationary installation into stapling devices and special purpose machines.
-
Fastening in any position
-
Easily mounted with built-in mounting bracket
-
Available in either right hand or left-hand load
-
Different stroke/feed path up to 25, 40, 80 mm
-
Reloading time of a staple coil in less than one minute
If you are located outside the available countries for this product (United States, Mexico), you can enquire the products here.
Technical data
Staple
Staple type
carton closing roll staples
Leg length
35 - 60 mm | 1 3/8" - 2 3/8""
Leg thickness
0.8 mm | 0.031"
Leg width
1.5 mm | 0.059"
Outside crown
20 mm | 0.787"
Inside crown
18 mm | 0.708"
Tool
Magazine capacity
5000
Staple Length
8 - 20 mm | 5/16" - 25/32""
Height
329 mm | 12.95"
Width
106 mm | 4.17"
Length
270 mm | 10.63"
Weight
7.3 kg | 16.1 lbs
Pressure
4 - 6 bar | 58 - 87 psi
System
Brand
MEZGER®
Series of stapling heads
A 20-35, A 20-42, A 20-60
Applications
Carton Closing
Automotive
Pallets & crates
