FASCO® INMOTION

Our handheld sled for precise stapling or nailing.

Stapling and nailing – with a single device! The mechanical control of FASCO® INMOTION activates pneumatic tools at varying intervals, depending on the settings.

The base module

FASCO® INMOTION is our flexible and efficient solution for entering professional series production. Smooth and precise in straight-line operation, it guarantees ergonomic working conditions. Thanks to its modular design, our INMOTION base module provides ample space for tool integration. Compatible FASCO® nailers and stapler can be mounted in just moments without the need for tools, while the dual handles – one side infinitely adjustable – enhance ergonomic handling.

The FASCO® INMOTION base module at a glance

7 compatible Tools

INMOTION is compatible with 7 different FASCO® pneumatic tools, making it exceptionally versatile. FASCO® nailers or staplers – including high-performance tools for processing wide-crown staples – can be mounted on the INMOTION base module in seconds without the need for tools. Paired with the Pogo Stick (accessory), series production becomes even more ergonomic and time-efficient.

See all tools for FASCO® INMOTION

Compatible tools & accessories

#1

FASCO® F44AC CN15-PS60A LIGNOLOC® IM

Innovative tool specifically designed for processing our sustainable LIGNOLOC® wooden nails. Ideal for ecological timber construction projects: It excels in fastening wood materials in timber frames as well as in the production of cross-laminated and solid wood wall systems.

See FASCO® F44AC CN15-PS60A LIGNOLOC® IM

#2

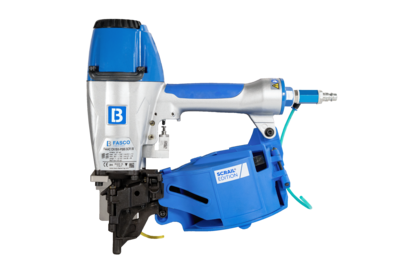

FASCO® F44AC CN15W-PS65 SCRAIL® IM

The ideal tool for prefabricated house construction: Fast, precise, and efficient performance for large-scale series production projects. Featuring a particularly robust and durable design, it is perfect for securing floor structures, gypsum fiberboards, or for use in timber frames.

See FASCO® F44AC CN15W-PS SCRAIL® IM

#3

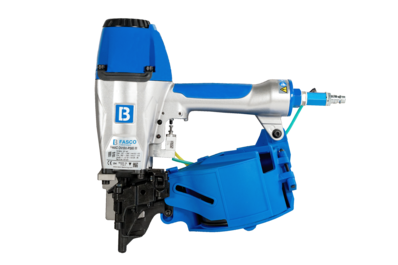

FASCO® F44AC CN15W-PS65 IM

This pneumatic nailer is specifically designed for fastening coil nails, making it ideal for prefabricated house construction. It excels in securely fixing floors and subfloors, paneling, as well as fastening wood-based materials, gypsum fiberboards, and drywall in timber frame structures. Its robust and durable design ensures significant time and cost savings.

See FASCO® F44AC CN15W-PS65 IM

#4

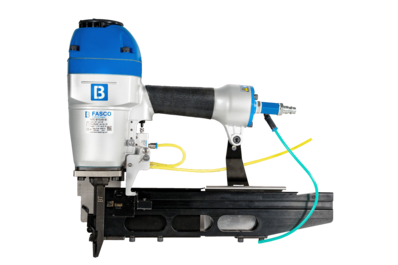

FASCO® F47C B7G-65 IM

With this construction stapler, working in timber framing, cladding, paneling, and drywall applications is quick and precise. Tool-free removal of jammed staples and fast reloading via the magazine guide rail ensure exceptional time efficiency.

See FASCO® F47C B7G-65 IM

#5

FASCO® F47C SQ-65 IM

Our powerful stapler for processing construction staples up to 2.60 in (65 mm). It effortlessly connects panel joints in drywall applications, and its robust design consistently delivers high performance, even under intensive use.

See FASCO® F47C SQ-65 IM

#6

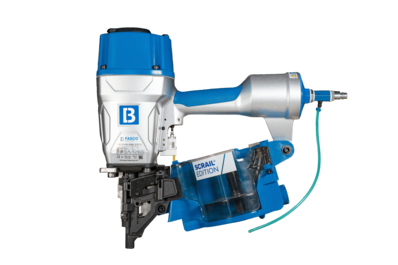

FASCO® F60 CN15W-PS90 SCR IM

A particularly powerful pneumatic nailer specifically designed for processing collated nails and SCRAIL® nail screw fasteners by BECK. Combined with our FASCO® INMOTION base module and the Pogo Stick (accessory), this tool delivers maximum flexibility and efficiency for industrial series production.



See FASCO® F60 CN15W-PS90 SCR IM

#7

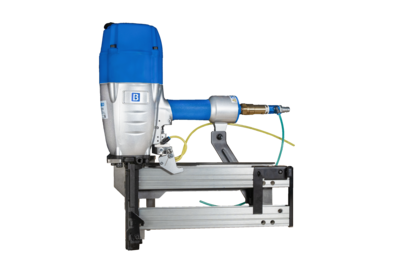

FASCO® F81C BSP-130 IM

Our heavy-duty wire stapler features a rubber comfort grip for a non-slip hold and reduced vibrations. It includes easy jam clearing and an additional handle for even greater ergonomic comfort in the high-performance class.

See FASCO® F81C BSP 130

#8

FASCO® INMOTION Pogo Stick



The FASCO® INMOTION Pogo Stick makes working on large surfaces and in series production even more ergonomic. In addition to a standard length of 39.40 in (100 cm), our Pogo Stick is available in custom-made lengths up to 98.40 in (250 cm) on request, making it the ideal accessory for standing work with the FASCO® INMOTION base module by BECK. The Pogo Stick can rotate 360° and swivel 90° upward and downward. Color-coded connectors ensure easy and quick assembly.

See Pogo Stick für FASCO® INMOTION

Compatible tools & accessories

#1

Applications

• Fastening of engineered wood panels

• Automated timber frame construction

• Installation of gypsum fiberboards and drywall panels

• Securing of insulation boards in timber frame construction

• Construction of floors and subfloors

• Joining of wood-based panels in the packaging industry

FASCO® INmotion

HIghlights

01

All adjustment and setting options can be performed manually.

02

Mechanically predefined shot distances of 1.60, 2.40, 3.15 and 4.72 in (40, 60, 80, and 120 mm).

03

Precise straight-line tracking through a rigid axle and dual-wheel profiling.

04

Dual handles: Individually triggerable, infinitely adjustable on one side.

05

Continuously adjustable pogo stick up to 98.40 in (250 cm) on request.

06

Tool-free and done in seconds: Tool change and height adjustment.

07

Centrally positioned parallel stop for precise work on edges.

08

Continuously extendable side stop up to 39.40 in (100 cm).

09

Fixed target device at the front and rear.

10

Modular design with ample tool storage space.

11

Precise craftsmanship made of aluminum and stainless steel.

Three triggers – full flexibility

The FASCO® INMOTION base module allows the triggering of mounted pneumatic tools either at the handles, at the front part of the hand sled, or via a connected Pogo Stick.

See the FASCO® INMOTION base module

Done in seconds and without tools

Tool Change

01

Load magazine

Adjust the magazine plate of the tool according to the length of the SCRAIL® or nails using the scale, and load the magazine with a SCRAIL® or nail coil. The nail should be positioned in the nose channel.

02

Place the tool

Place the tool onto the INMOTION handheld sled. Secure the height adjustment screw to the desired height of the tool.



03

Connect the air hoses

Connect the air hoses according to the color markings.

04

Couple the compressed air hose

Couple the compressor's air hose. Set the compressor air pressure between 72.5 and 116 psi (5 and 8 bar). For more information, refer to the manual of your FASCO® tool.



05

Perform a test shot

Press the single trigger for a test shot. Check the result of your shot and adjust and secure the height adjustment if necessary.

06

Secure the tool

Remove the tool from the INMOTION base module and tighten the locking nut with a 0.70 in (17 mm) wrench. Attach the device to the FASCO® INMOTION.
