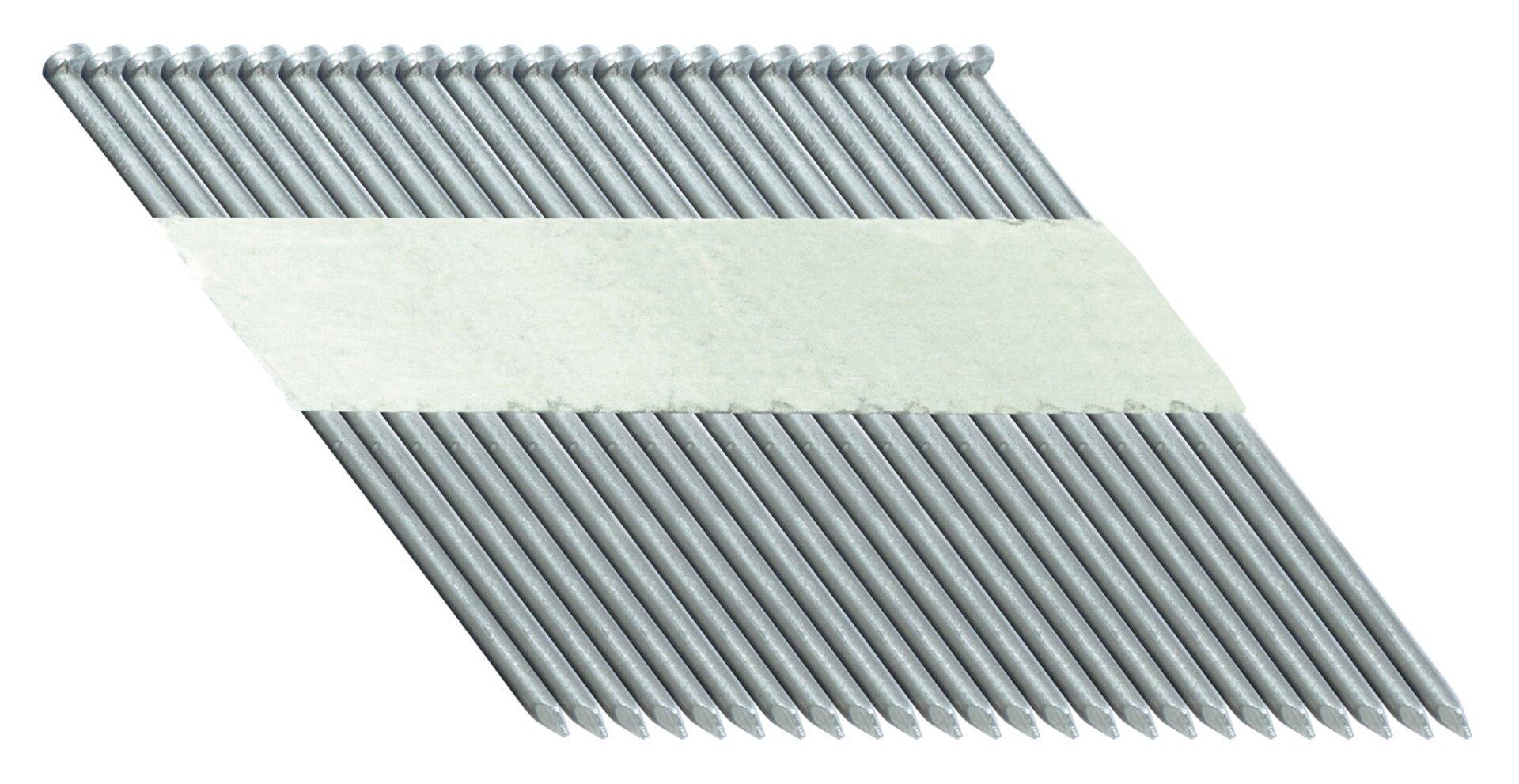

PAPER TAPE CLIPPED HEAD NAILS
Indispensable in timber frame construction due to the large collation angle, giving the best access to tight corners and niches. Less reloading necessary compared to strip round head nails, due to the distanceless collation.
Collation type
Paper Tape
Collation degrees
33°
Length
45 - 100 mm | 1 3/4 - 4"
Diameter
2.3 - 3.4 mm | 0.091 - 0.134"
Product variants
Technical data
Head type
d-head / clipped head
Collation type
Paper Tape
Diameter
2.3 - 3.4 mm | 0.091 - 0.134"
Length
45 - 100 mm | 1 3/4 - 4"
Strip capacity
25 - 55
Collation degrees
33°
Finish
bright, electro-galvanized, hot dip galvanized, black oxidated
Material
Standard Steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4, High Carbon Steel
Nailpoint
chisel point, diamond point, no point
Shank
barbed, ring, screw, smooth
FASCO® tool

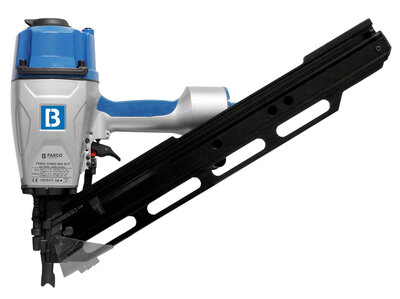

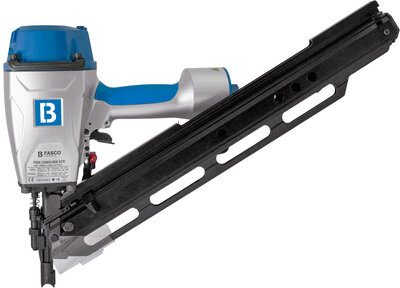

F58A CHN33-90B SCR, F58AC CHN33-90B SCR
Applications
Decking
Framing
Sheathing
Manufactured housing
Pallets & crates
Standards and test marks
EN 14592
Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.
ASTM F1667
We manufacture our products in accordance with the requirements of ASTM F1667. If you need detailed information, we are happy to help.
ESR 1539
Many of our fasteners are approved for use in the U.S. market according to ICC ESR 1539.
Suitable Products
PAPER TAPE CLIPPED HEAD NAILS
| Head type | Collation type | Diameter | Length | Strip capacity | Collation degrees | Finish | Material | Nailpoint | Shank | FASCO® tool | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PS613E | d-head / clipped head | Paper Tape | 2.9 mm | 0.114" | 50 mm | 2" | 25 | 33° | bright | Standard Steel | diamond point | smooth | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS813E | d-head / clipped head | Paper Tape | 2.9 mm | 0.114" | 60 mm | 2 3/8" | 25 | 33° | bright | Standard Steel | diamond point | smooth | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS813RE | d-head / clipped head | Paper Tape | 2.9 mm | 0.114" | 60 mm | 2 3/8" | 25 | 33° | bright | Standard Steel | diamond point | ring | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS813RGE | d-head / clipped head | Paper Tape | 2.9 mm | 0.114" | 60 mm | 2 3/8" | 25 | 33° | electro-galvanized | Standard Steel | diamond point | ring | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1021E | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 75 mm | 3" | 25 | 34° | bright | Standard Steel | diamond point | smooth | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1021RGE | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 75 mm | 3" | 25 | 34° | electro-galvanized | Standard Steel | diamond point | ring | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1021RHDE | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 75 mm | 3" | 25 | 34° | hot dip galvanized | Standard Steel | diamond point | ring | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS813RHDE4M | d-head / clipped head | Paper Tape | 2.9 mm | 0.114" | 60 mm | 2 3/8" | 25 | 33° | hot dip galvanized | Standard Steel | diamond point | ring | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS813RSSE4M | d-head / clipped head | Paper Tape | 2.9 mm | 0.114" | 60 mm | 2 3/8" | 25 | 33° | bright | Stainless Steel 304 / A2 | diamond point | ring | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1021RHDE3M | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 75 mm | 3" | 25 | 34° | hot dip galvanized | Standard Steel | diamond point | ring | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1021RSSE3M | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 75 mm | 3" | 25 | 34° | bright | Stainless Steel 304 / A2 | diamond point | ring | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1221HDE3M | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 82 mm | 3 1/4" | 25 | 34° | hot dip galvanized | Standard Steel | diamond point | smooth | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1221SSE3M | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 82 mm | 3 1/4" | 25 | 34° | bright | Stainless Steel 304 / A2 | diamond point | smooth | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1221RHDE3M | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 82 mm | 3 1/4" | 25 | 34° | hot dip galvanized | Standard Steel | diamond point | ring | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1221RSSE3M | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 82 mm | 3 1/4" | 25 | 34° | bright | Stainless Steel 304 / A2 | diamond point | ring | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS813RHDE | d-head / clipped head | Paper Tape | 2.9 mm | 0.114" | 60 mm | 2 3/8" | 25 | 33° | hot dip galvanized | Standard Steel | diamond point | ring | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1221E | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 82 mm | 3 1/4" | 25 | 34° | bright | Standard Steel | diamond point | smooth | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1221RHDE | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 82 mm | 3 1/4" | 25 | 34° | hot dip galvanized | Standard Steel | diamond point | ring | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1221RGE | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 82 mm | 3 1/4" | 25 | 34° | electro-galvanized | Standard Steel | diamond point | ring | F58AC CHN33-90B SCR, F58A CHN33-90B SCRAIL |
| PS1031E | d-head / clipped head | Paper Tape | 3.4 mm | 0.134" | 76 mm | 3" | 25 | 34° | bright | Standard Steel | diamond point | smooth | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1231E | d-head / clipped head | Paper Tape | 3.4 mm | 0.134" | 82 mm | 3 1/4" | 25 | 34° | bright | Standard Steel | diamond point | smooth | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| PS1631E | d-head / clipped head | Paper Tape | 3.4 mm | 0.134" | 88 mm | 3 1/2" | 25 | 34° | bright | Standard Steel | diamond point | smooth | F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR |
| Head type | Collation type | Diameter | Length | Strip capacity | Collation degrees | Finish | Material | Nailpoint | Shank | FASCO® tool | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CHN29.1576 | d-head / clipped head | Paper Tape | 2.9 mm | 0.114" | 63 mm | 2 1/2" | 40 | 33° | electro-galvanized | Standard Steel | diamond point | ring | FASCO F58AC CHN33-90B SCR, F58A CHN33-90B SCRAIL |
| CHN31.1419 | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 82 mm | 3 1/4" | 37 | 34° | electro-galvanized | Standard Steel | diamond point | ring | FASCO F58AC CHN33-90B SCR, F58A CHN33-90B SCRAIL |
| CHN31.1420 | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 82 mm | 3 1/4" | 40 | 34° | electro-galvanized | Standard Steel | diamond point | smooth | FASCO F58AC CHN33-90B SCR, F58A CHN33-90B SCRAIL |
| CHN31.1422 | d-head / clipped head | Paper Tape | 3.1 mm | 0.122" | 88 mm | 3 1/2" | 37 | 34° | electro-galvanized | Standard Steel | diamond point | ring | FASCO F58AC CHN33-90B SCR, F58A CHN33-90B SCRAIL |
| CHN29.1586 | d-head / clipped head | Paper Tape | 2.9 mm | 0.114" | 75 mm | 3" | 40 | 34° | electro-galvanized | Standard Steel | diamond point | ring | F58A CHN33-90B SCR, F58AC CHN33-90B SCR |
