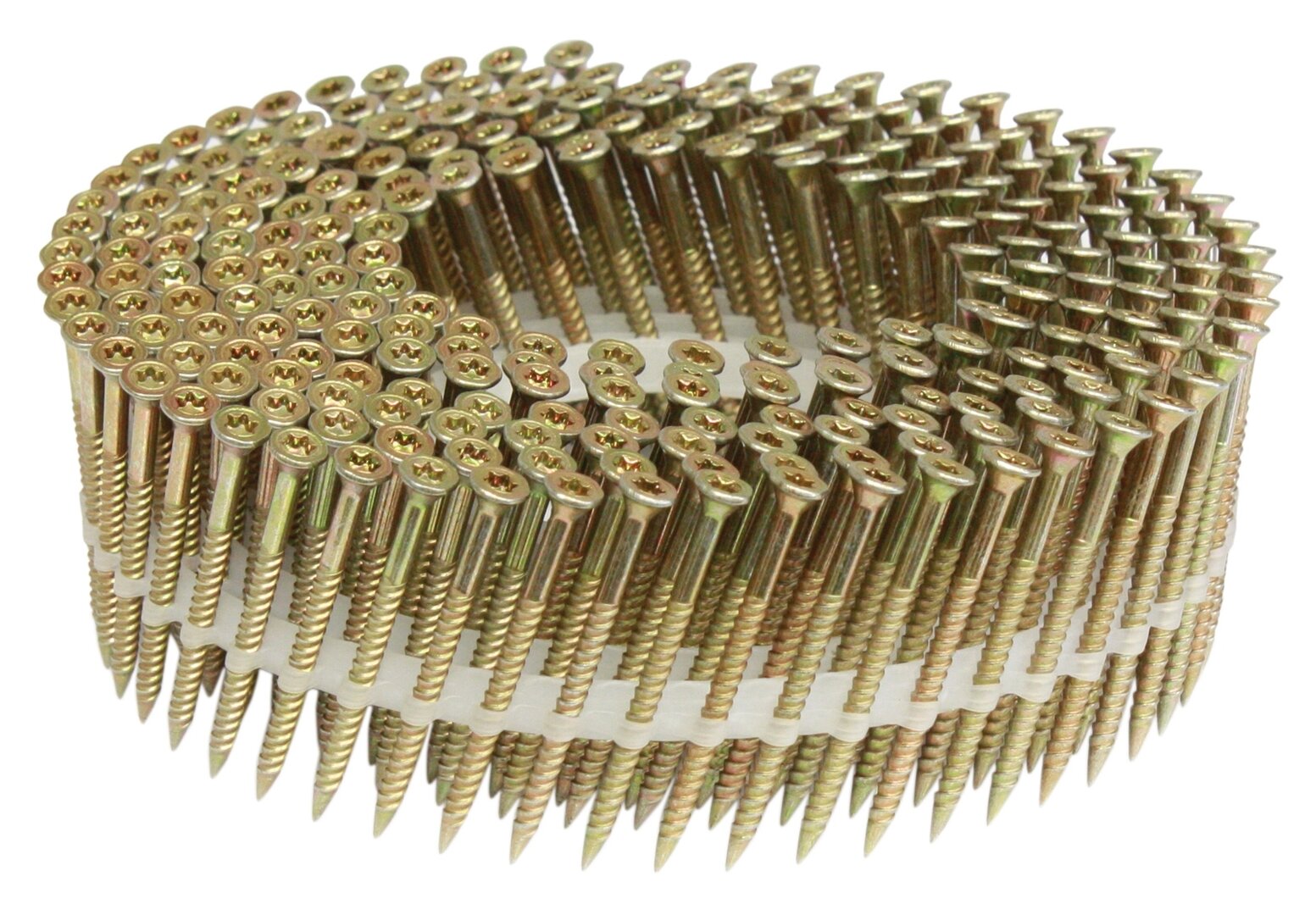

Plastic Coil Marathon SCRAIL®
Due to the residue-free processing, perfectly suitable for the fastening of wooden façades and generally applications in the visible area. Compatible with the KMR 3528 tool.
Collation type
Plastic Rope (carrier)
Inner diameter
2.5 - 2.8 mm | 0.098 - 0.11"
Outer diameter
2.8 - 3.5 mm | 0.11 - 0.138"
Length
25 - 90 mm | 1"
Thread type
Fine Thread, Coarse Thread, Steelthread
Technical data
Thread type
Fine Thread, Coarse Thread, Steelthread
Collation type
Plastic Rope (carrier)
Inner diameter
2.5 - 2.8 mm | 0.098 - 0.11"
Outer diameter
2.8 - 3.5 mm | 0.11 - 0.138"
Length
25 - 90 mm | 1"
Drive type
phillips®, pozi (Pozidriv®), Torx®, versa
Coil capacity
125 - 250
Head type
Countersunk head, Pan head, Trumpet head
Finish
electro-galvanized, bright, FASCOAT®, black oxidated
Material
Standard steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4
Collation degrees
20°
Applications
Decking
Fencing
Framing
Manufactured housing
Millwork
Pallets & crates
Standards and test marks
EN 14592
Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.
ASTM F1667
We manufacture our products in accordance with the requirements of ASTM F1667. If you need detailed information, we are happy to help.
