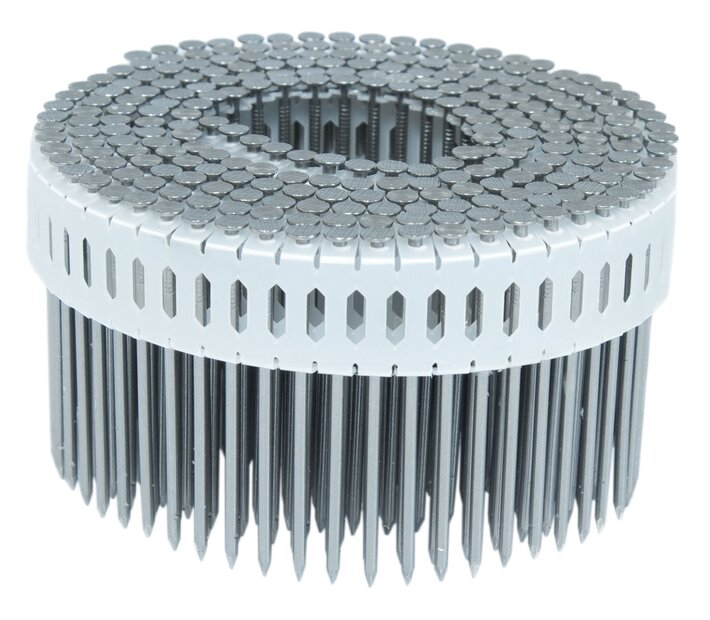

PLASTIC SHEET COIL NAILS
The ideal collation type for façades and applications, where work is mainly carried out in the visible area. Can be processed up to a length of 65 mm with the FASCO® F44AC CN0-PS65 tool.
Collation type
Plastic Sheet Coil
Collation degrees
0°
Length
27 - 75 mm | 1 1/16 - 3"
Diameter
2.1 - 3.1 mm | 0.083 - 0.122"
Product variants
Technical data
Head type
bugle head, domed head, flat head, trumpet head
Collation type
Plastic Sheet Coil
Diameter
2.1 - 3.1 mm | 0.083 - 0.122"
Length
27 - 75 mm | 1 1/16 - 3"
Coil capacity
250 - 1500
Coil shape
flat
Collation degrees
0°
Finish
bright, electro-galvanized, hot dip galvanized, painted, black oxidated
Material
Standard Steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4, High Carbon Steel, Aluminum, Copper, Brass
Nailpoint
chisel point, diamond point
Shank
knurled, ring, screw, smooth, smooth-roughened
FASCO® tool
F44AC CN0-PS65, F44AC CN0-PS65 IM
Applications
Fencing
Sheathing
Siding
Furniture & bedding
Manufactured housing
Millwork
Pallets & crates
Standards and test marks
EN 14592
Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.
ASTM F1667
We manufacture our products in accordance with the requirements of ASTM F1667. If you need detailed information, we are happy to help.
ESR 1539
Many of our fasteners are approved for use in the U.S. market according to ICC ESR 1539.
Suitable Products
PLASTIC SHEET COIL NAILS
| Head type | Collation type | Diameter | Length | Coil capacity | Coil shape | Collation degrees | Finish | Material | Nailpoint | Shank | FASCO® tool | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PC21292SSE4M | flat head | Plastic Sheet Coil | 2.3 mm | 0.091" | 63 mm | 2 1/2" | 250 | flat | 0° | bright | Stainless Steel 304 / A2 | diamond point | smooth | F44AC CN0-PS65 |
| PC178092RGE | flat head | Plastic Sheet Coil | 2.3 mm | 0.091" | 48 mm | 1 7/8" | 300 | flat | 0° | electro galvanized with Diamond Coating | Standard Steel | diamond point | ring | F44AC CN0-PS65 |
| PC17899SALUM4M | flat head | Plastic Sheet Coil | 2.5 mm | 0.098" | 48 mm | 1 7/8" | 250 | flat | 0° | bright with Diamond Coating | Aluminum | diamond point | screw | F44AC CN0-PS65 |
| PC17886RHDE4M | flat head | Plastic Sheet Coil | 2.2 mm | 0.087" | 48 mm | 1 7/8" | 250 | flat | 0° | hot dip galvanized with Diamond Coating | Standard Steel | diamond point | ring | F44AC CN0-PS65 |
| PC586RHDE | flat head | Plastic Sheet Coil | 2.2 mm | 0.087" | 45 mm | 1 3/4" | 300 | flat | 0° | hot dip galvanized with Diamond Coating | Standard Steel | diamond point | ring | F44AC CN0-PS65 |
| PC586RGE4M | flat head | Plastic Sheet Coil | 2.2 mm | 0.087" | 45 mm | 1 3/4" | 250 | flat | 0° | electro galvanized with Diamond Coating | Standard Steel | diamond point | ring | F44AC CN0-PS65 |
| PC586RSSE4M | flat head | Plastic Sheet Coil | 2.2 mm | 0.087" | 45 mm | 1 3/4" | 250 | flat | 0° | bright with Diamond Coating | Stainless Steel 304 / A2 | diamond point | ring | F44AC CN0-PS65 |
| PC17886RGE4M | flat head | Plastic Sheet Coil | 2.2 mm | 0.087" | 48 mm | 1 7/8" | 250 | flat | 0° | electro galvanized with Diamond Coating | Standard Steel | diamond point | ring | F44AC CN0-PS65 |
| PC17886RSSE4M | flat head | Plastic Sheet Coil | 2.2 mm | 0.087" | 48 mm | 1 7/8" | 250 | flat | 0° | bright with Diamond Coating | Stainless Steel 304 / A2 | diamond point | ring | F44AC CN0-PS65 |
| PC17886GE | flat head | Plastic Sheet Coil | 2.2 mm | 0.087" | 48 mm | 1 7/8" | 300 | flat | 0° | electro galvanized with Diamond Coating | Standard Steel | diamond point | smooth | F44AC CN0-PS65 |
| PC17886RGE | flat head | Plastic Sheet Coil | 2.2 mm | 0.087" | 48 mm | 1 7/8" | 300 | flat | 0° | electro galvanized with Diamond Coating | Standard Steel | diamond point | ring | F44AC CN0-PS65 |
| PC17886RHDE | flat head | Plastic Sheet Coil | 2.2 mm | 0.087" | 48 mm | 1 7/8" | 300 | flat | 0° | hot dip galvanized with Diamond Coating | Standard Steel | diamond point | ring | F44AC CN0-PS65 |
| PC586RHDE4M | flat head | Plastic Sheet Coil | 2.2 mm | 0.087" | 45 mm | 1 3/4" | 250 | flat | 0° | hot dip galvanized with Diamond Coating | Standard Steel | diamond point | ring | F44AC CN0-PS65 |
| PC692HDE4M | flat head | Plastic Sheet Coil | 2.3 mm | 0.091" | 50 mm | 2" | 250 | flat | 0° | hot dip galvanized with Diamond Coating | Standard Steel | diamond point | smooth | F44AC CN0-PS65 |
| PC692GE4M | flat head | Plastic Sheet Coil | 2.3 mm | 0.091" | 50 mm | 2" | 250 | flat | 0° | electro galvanized with Diamond Coating | Standard Steel | diamond point | smooth | F44AC CN0-PS65 |
| PC792HDE4M | flat head | Plastic Sheet Coil | 2.3 mm | 0.091" | 57 mm | 2 1/4" | 250 | flat | 0° | hot dip galvanized with Diamond Coating | Standard Steel | diamond point | smooth | F44AC CN0-PS65 |
| PC792SSE4M | flat head | Plastic Sheet Coil | 2.3 mm | 0.091" | 57 mm | 2 1/4" | 250 | flat | 0° | bright with Diamond Coating | Stainless Steel 304 / A2 | diamond point | smooth | F44AC CN0-PS65 |
| PC792GE4M | flat head | Plastic Sheet Coil | 2.3 mm | 0.091" | 57 mm | 2 1/4" | 250 | flat | 0° | electro galvanized with Diamond Coating | Standard Steel | diamond point | smooth | F44AC CN0-PS65 |
| PC792RHDE4M | flat head | Plastic Sheet Coil | 2.3 mm | 0.091" | 57 mm | 2 1/4" | 250 | flat | 0° | hot dip galvanized with Diamond Coating | Standard Steel | diamond point | ring | F44AC CN0-PS65 |
| PC792RGE4M | flat head | Plastic Sheet Coil | 2.3 mm | 0.091" | 57 mm | 2 1/4" | 250 | flat | 0° | electro galvanized with Diamond Coating | Standard Steel | diamond point | ring | F44AC CN0-PS65 |
| PC792RSSE4M | flat head | Plastic Sheet Coil | 2.3 mm | 0.091" | 57 mm | 2 1/4" | 250 | flat | 0° | bright with Diamond Coating | Stainless Steel 304 / A2 | diamond point | ring | F44AC CN0-PS65 |
| PC21292HDE4M | flat head | Plastic Sheet Coil | 2.3 mm | 0.091" | 63 mm | 2 1/2" | 250 | flat | 0° | hot dip galvanized with Diamond Coating | Standard Steel | diamond point | smooth | F44AC CN0-PS65 |
| PC21292GE4M | flat head | Plastic Sheet Coil | 2.3 mm | 0.091" | 63 mm | 2 1/2" | 250 | flat | 0° | electro galvanized with Diamond Coating | Standard Steel | diamond point | smooth | F44AC CN0-PS65 |
| PC178092GE | flat head | Plastic Sheet Coil | 2.3 mm | 0.091" | 48 mm | 1 7/8" | 300 | flat | 0° | electro galvanized with Diamond Coating | Standard Steel | diamond point | smooth | F44AC CN0-PS65 |
| PC799SE | flat head | Plastic Sheet Coil | 2.5 mm | 0.098" | 57 mm | 2 1/4" | 300 | flat | 0° | bright with Diamond Coating | Standard Steel | diamond point | screw | F44AC CN0-PS65 |
| PC799RGE | flat head | Plastic Sheet Coil | 2.5 mm | 0.098" | 57 mm | 2 1/4" | 300 | flat | 0° | electro galvanized with Diamond Coating | Standard Steel | diamond point | ring | F44AC CN0-PS65 |
| PC799GE | flat head | Plastic Sheet Coil | 2.5 mm | 0.098" | 57 mm | 2 1/4" | 300 | flat | 0° | electro galvanized with Diamond Coating | Standard Steel | diamond point | smooth | F44AC CN0-PS65 |
