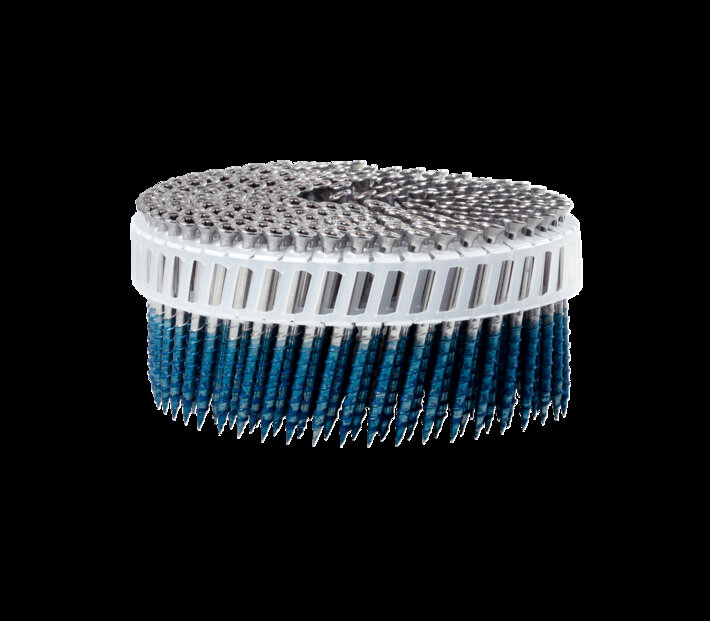

PLASTIC SHEET COIL SCRAIL® CHIPBOARD

SCRAIL® CHIPBOARD are a brand-new addition to the SCRAIL® nail screw fastener range. These special nail screw fasteners impress with their precisely rolled-out needle point, which ensures excellent driving and retightening behavior. Thanks to their easy readjustment, SCRAIL® CHIPBOARD nail screw fasteners are the ideal choice for temporary applications in very soft wood or wood-based materials, such as in crate construction, but also for fastening chipboard. They are also suitable for outdoor use. In the stainless-steel version - optionally with or without a black oxidation for optimum visual adaptation to weathered wooden boards - they demonstrate their versatility. Another advantage: the special thread geometry even allows curved or warped wooden boards to be tightened.



  • Available in lengths from 1.97 in to 3.54 in
  • Special rolled-out needle point ensures optimum driving and retightening behavior
  • Even warped wood can be retightened
  • Easy processing with the FASCO® F50 CN15W-PS65 SCR coil nailer or the FASCO® F60 CN15W-PS90 SCR coil nailer in the SCRAIL® Edition
  • Cost and time savings thanks to nail screw fasteners: 2x faster than collated screws, 8x faster than bulk screws
Request product

Product variants

Technical data

Collation type
Plastic Sheet Coil
Inner diameter
2.9 - 3.1 mm | 0.114 - 0.122"
Outer diameter
3.5 - 3.9 mm | 0.138 - 0.154"
Length
50 - 90 mm | 2"
Coil capacity
200
Head type
Countersunk head
Finish
electro-galvanized, FASCOAT®, black oxidated
Material
Standard steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4
Collation degrees
15°
FASCO® tool
F50 CN15W-PS65 SCR, F60 CN15W-PS90 SCR FS

Applications

icon
Flooring & subflooring
icon
Interior construction
icon
Decking
icon
Fencing
icon
Siding
icon
Furniture & bedding
icon
Pallets & crates
icon
Structural timber construction
PLASTIC SHEET COIL SCRAIL® CHIPBOARD
  Collation type Inner diameter Outer diameter Length Coil capacity Head type Finish Material Collation degrees FASCO® tool
CN31AGSC.12 Plastic Sheet Coil 3.1 mm | 0.122" 3.9 mm | 0.154" 55 mm 200 Countersunk head bright with Diamond Coating Stainless Steel 304 / A2 15° F50 CN15W-PS65 SCR, F60 CN15W-PS90 SCR FS
CN31AGSC.13 Plastic Sheet Coil 3.1 mm | 0.122" 3.9 mm | 0.154" 65 mm 200 Countersunk head bright with Diamond Coating Stainless Steel 304 / A2 15° F50 CN15W-PS65 SCR, F60 CN15W-PS90 SCR FS
CN31AGSC.14 Plastic Sheet Coil 3.1 mm | 0.122" 3.9 mm | 0.154" 75 mm 200 Countersunk head bright with Diamond Coating Stainless Steel 304 / A2 15° F50 CN15W-PS65 SCR, F60 CN15W-PS90 SCR FS
CN28AGSC.774 Plastic Sheet Coil 2.9 mm | 0.114" 3.5 mm | 0.138" 65 mm 200 Countersunk head electro galvanized with Diamond Coating Standard steel 15° F50 CN15W-PS65 SCR, F60 CN15W-PS90 SCR FS
CN28AGSC.775 Plastic Sheet Coil 2.8 mm | 0.11" 3.5 mm | 0.138" 50 mm 200 Countersunk head electro-galvanized, FASCOAT®, black oxidated Standard steel, Stainless Steel 304 / A2 15° F50 CN15W-PS65 SCR, F60 CN15W-PS90 SCR FS
CN28AGSC.807 Plastic Sheet Coil 2.8 mm | 0.11" 3.5 mm | 0.138" 80 mm 200 Countersunk head electro galvanized with Diamond Coating Standard steel 15° F50 CN15W-PS65 SCR, F60 CN15W-PS90 SCR FS
