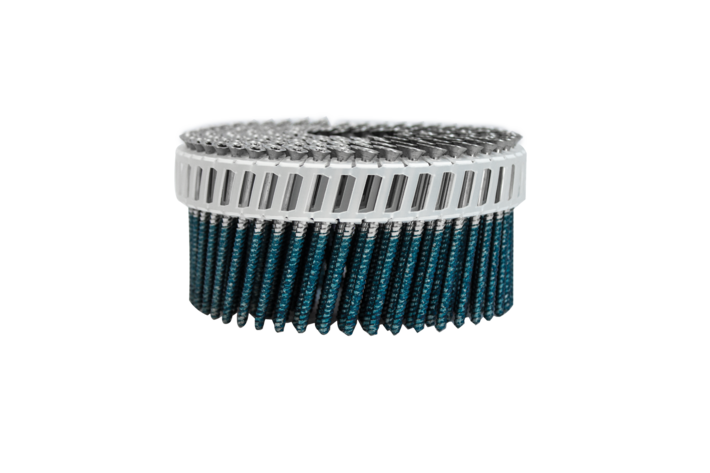

PLASTIC SHEET COIL SCRAIL® SPLITLESS

Our SCRAIL® SPLITLESS 15° nail screw fastener is the ideal solution for fast and secure installation of premium decking boards. Its specially designed blunt tip effectively minimizes the risk of wood splitting, both in the top layer and substructure. These nail screw fasteners have been specifically optimized to ensure smooth processing in softwoods such as larch and douglas fir. The combination of stainless steel and our innovative BECK DIAMOND COATING ensures maximum durability and increased holding power, even in demanding outdoor environments. Perfectly suited for decking and similar projects such as boardwalks or pathways, SCRAIL® SPLITLESS 15° nail screw fasteners can be ideally processed with the FASCO® F60 CN15W-PS90 SCR nailer by BECK, allowing for a highly efficient workflow.

  • SCRAIL® nail screw fastener with fine thread and specially designed anti-split tip
  • BECK DIAMOND COATING: Our patented coating for easier driving and maximum pull-out strength
  • Perfect, splinter-free processing of sensitive softwoods such as larch or douglas fir
  • Manufactured from stainless A2 and A4 steel with FasCoat® corrosion protection
Request product

Product variants

Technical data

Thread type
Fine Thread
Collation type
Plastic Sheet Coil
Inner diameter
2.8 - 2.9 mm | 0.11 - 0.114"
Outer diameter
3.2 - 3.3 mm | 0.126 - 0.13"
Length
48 - 75 mm | 1 7/8"
Coil capacity
200
Head type
Countersunk head
Finish
black oxidated
Material
Stainless Steel 304 / A2, Stainless Steel 316 / A4
Collation degrees
15°
FASCO® tool
F60 CN15W-PS90 SCR FS, F60 CN15W-PS90 SCR IM

Applications

icon
Drywall
icon
Flooring & subflooring
icon
Interior construction
icon
Decking
icon
Fencing
icon
Framing
icon
Sheathing
icon
Siding
icon
Furniture & bedding
icon
Manufactured housing
icon
Millwork
icon
Pallets & crates
icon
Structural timber construction

Standards and test marks

EN 14592

Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.

ASTM F1667

We manufacture our products in accordance with the requirements of ASTM F1667. If you need detailed information, we are happy to help.

PLASTIC SHEET COIL SCRAIL® SPLITLESS
  Thread type Collation type Inner diameter Outer diameter Length Coil capacity Head type Material Collation degrees FASCO® tool Item number Fastener type Magazine capacity Nail length Height Width Length Weight Pressure Actuation system Loading
CN28AGSC.681 Fine Thread Plastic Sheet Coil 2.8 mm | 0.11" 3.2 mm | 0.126" 57 mm 200 Countersunk head Stainless Steel 304 / A2 15° F60 CN15W-PS90 SCR 000011596 15° Plastic Sheet Coil SCRAIL® 200 - 300 50 - 90 mm | 2 - 3 1/2" 387 mm | 15.24" 142 mm | 5.6" 369 mm | 14.53" 3.95 kg | 8.7 lbs 5 - 8 bar | 70 - 120 psi Contact Actuation coil
CN28AGSC.682 Fine Thread Plastic Sheet Coil 2.8 mm | 0.11" 3.3 mm | 0.13" 65 mm 200 Countersunk head Stainless Steel 304 / A2 15° F60 CN15W-PS90 SCR 000011596 15° Plastic Sheet Coil SCRAIL® 200 - 300 50 - 90 mm | 2 - 3 1/2" 387 mm | 15.24" 142 mm | 5.6" 369 mm | 14.53" 3.95 kg | 8.7 lbs 5 - 8 bar | 70 - 120 psi Contact Actuation coil
CN28AGSC.728 Fine Thread Plastic Sheet Coil 2.8 mm | 0.11" 3.2 mm | 0.126" 48 mm 200 Countersunk head Stainless Steel 304 / A2 15° F60 CN15W-PS90 SCR FS, F60 CN15W-PS90 SCR IM
