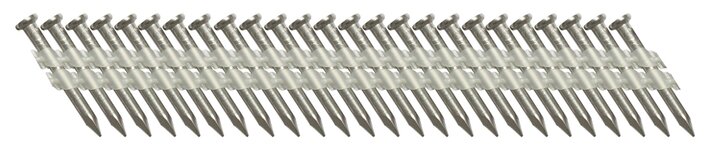

PLASTIC STRIP JOIST HANGER NAILS
Ideal solution for fastening joist hangers and metal plates, for timber joints in structural timber construction. With the powerful FASCO® F70G Joist/Anchor 34-60 gas tool, safe and efficient processing of joist hanger nails is guaranteed at all times.
Collation type
Plastic Strip
Collation degrees
33°
Length
39 - 63 mm | 1 1/2 - 2 1/2"
Diameter
3.3 - 4.2 mm | 0.13 - 0.165"
Technical data
Head type
flat head
Collation type
Plastic Strip
Diameter
3.3 - 4.2 mm | 0.13 - 0.165"
Length
39 - 63 mm | 1 1/2 - 2 1/2"
Strip capacity
25
Collation degrees
33°
Finish
bright, electro-galvanized, hot dip galvanized
Material
Standard Steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4, High Carbon Steel
Nailpoint
diamond point
Shank
ring, screw, smooth
FASCO® tool
F54 JOIST/ANCHOR 34-60, F70G JOIST/ANCHOR 34-60 EU, F70G JOIST/ANCHOR 34-60 US
Applications
Framing
Sheathing
Manufactured housing
Structural timber construction
Standards and test marks
EN 14592
Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.
ASTM F1667
We manufacture our products in accordance with the requirements of ASTM F1667. If you need detailed information, we are happy to help.
ESR 1539
Many of our fasteners are approved for use in the U.S. market according to ICC ESR 1539.
