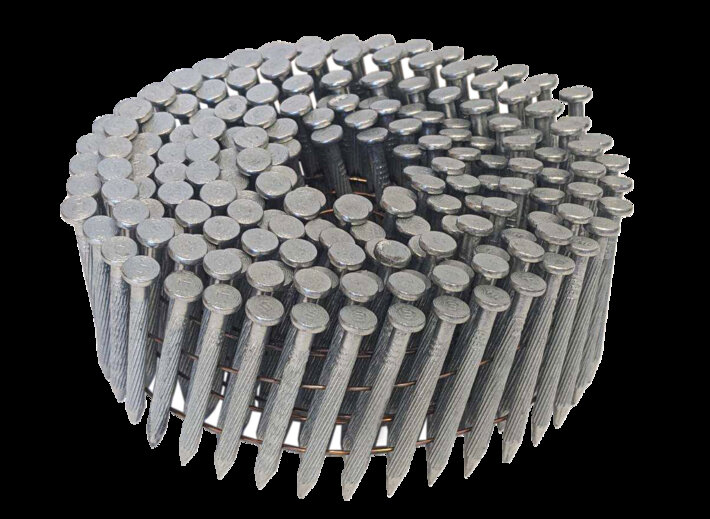

AKN-144 WIRE COIL PINS
Collation type
Wire Coil
Collation degrees
15°
Length
45 mm | 1 3/4"
Diameter
3.6 mm | 0.142"
Technical data
Head type
flat head
Collation type
Wire Coil
Diameter
3.6 mm | 0.142"
Length
45 mm | 1 3/4"
Coil capacity
200
Coil shape
flat
Collation degrees
15°
Finish
mechanically galvanized
Material
High Carbon Steel
Nailpoint
sharp pin point
Shank
knurled
ET&F® tool
ET&F Modell 710
Applications
Flooring & subflooring
Steel framing
Standards and test marks
IAPMO ER-335
This evaluation report recognizes ET&F® pneumatic pins used to attach wood structural panel sheathing to cold formed steel framing of 20ga to 10ga thickness for horizontal diaphragm construction. Withdrawal and lateral strength design values are also provided for individual pins.
