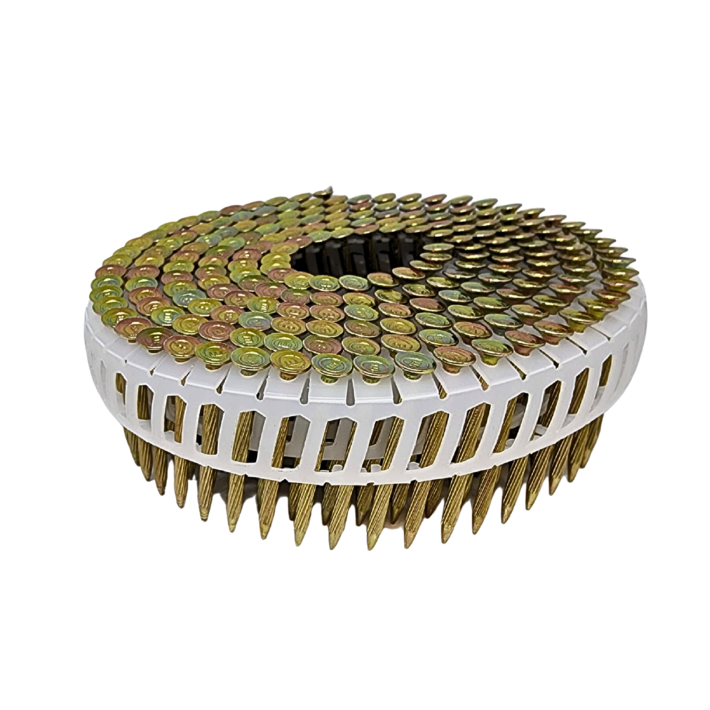

ADW-100 PLASTIC SHEET COIL PINS

Collation type
Plastic Sheet Coil
Collation degrees
15°
Length
38 mm | 1 1/2"
Diameter
2.54 mm | 0.1"
Request product

Technical data

Collation type
Plastic Sheet Coil
Diameter
2.54 mm | 0.1"
Length
38 mm | 1 1/2"
Coil capacity
200
Coil shape
flat
Collation degrees
15°
Finish
Aericote® 1000
Material
High Carbon Steel
Nailpoint
sharp pin point
Shank
knurled
FASCO® tool
ROCKFAST® MODEL 620

Applications

icon
Drywall
icon
Steel framing

Standards and test marks

IAPMO ER-335

This evaluation report recognizes ET&F® pneumatic pins used to attach wood structural panel sheathing to cold formed steel framing of 20ga to 10ga thickness for horizontal diaphragm construction. Withdrawal and lateral strength design values are also provided for individual pins.

ESR 1844

This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement HardiePanel® siding, manufactured by the James Hardie Building Products, to light gauge steel framing.

ESR 2273

This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement Hardiesoffit® Vented Plus™ manufactured by James Hardie Building Products to light gauge steel framing.

ESR 2290

This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement HardiePlank® siding, manufactured by the James Hardie Building Products, to light gauge steel framing and to concrete masonry units.
