ROCKFAST® MODEL 620

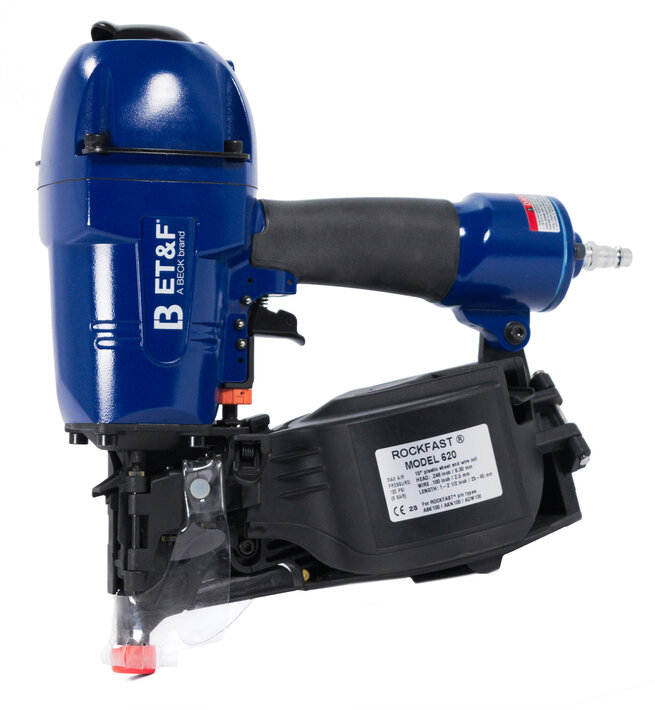

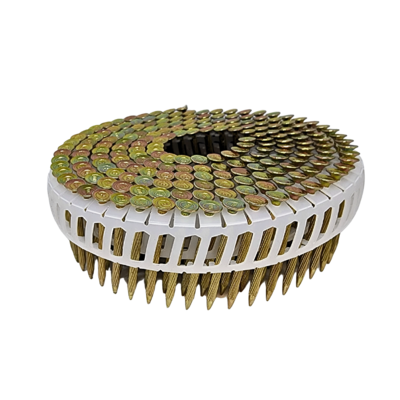

The ET&F® Rockfast® Model 620 coil nailer is small yet powerful. At under 6lbs and about 12.5 inches tall, the Model 620 still has the power to shoot into 12 gauge steel at the speed of nailing to wood. Microadjust depth of drive allows for perfect depth control into finished goods, reducing labor time spent touching up over driven fasteners. Internal parts for this system are engineered for the difficult task of attaching hardened pins to steel. This tool is capable of driving 1" - 1 1/2" pins, has a sequential fire activation for accurate pin placement, and the plastic sheet collation prevents flagging. (Note: This isn’t a regular coil siding nailer designed for wood studs)
Technical data
Applications
Standards and test marks
This evaluation report recognizes ET&F® pneumatic pins used to attach wood structural panel sheathing to cold formed steel framing of 20ga to 10ga thickness for horizontal diaphragm construction. Withdrawal and lateral strength design values are also provided for individual pins.
This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement HardiePanel® siding, manufactured by the James Hardie Building Products, to light gauge steel framing.
