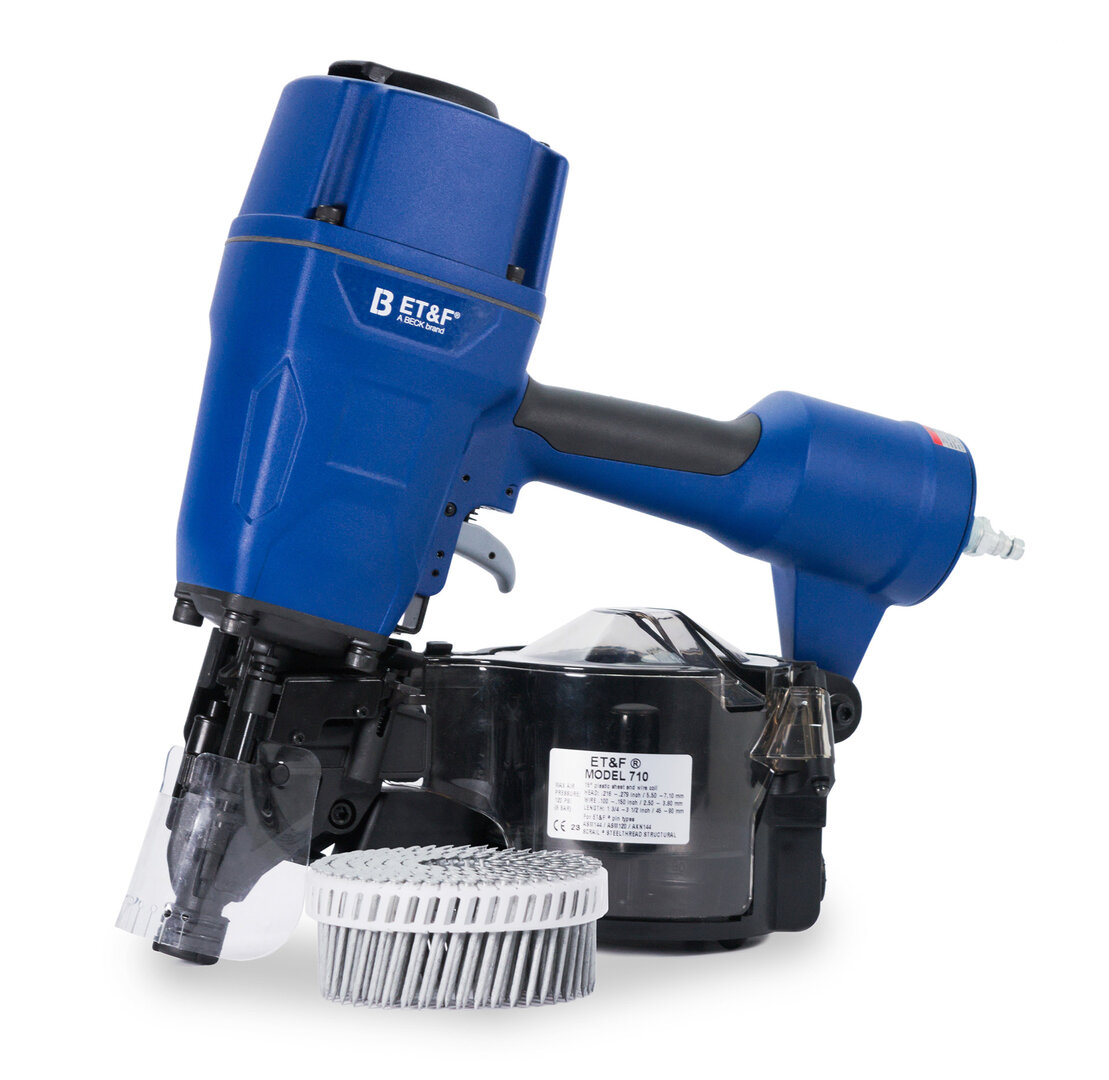

MODEL 710 - System
The ET&F® Model 710 was engineered for the power and durability required for use with steel and concrete substrates, making it perfect for heavy-duty applications. It has the capacity of driving pins 1-1/8" to 3-1/2" long, and the ability to drive into poured concrete or 10ga steel. Being extremely versatile, it's not only great for steel framing, but also for drywall, flooring and subflooring, and insulation installations. The Model 710 also helps improve job site safety with the ability to quickly and securely join materials, creating fewer accidents or injuries due to unstable frames or structures.
-
Power to drive into poured concrete or 10 ga. steel
-
Smooth and knurled collated pins available and special SCRAIL® STEELTHREAD STRUCTURAL
-
Capable of driving pins 1 1/8 inch to 3 1/2 inch long
Technical data
Nail
Head type
flat head
Collation type
Plastic Sheet Coil
Diameter
2.5 - 3.8 mm | .100" - 0.15"
Length
28 - 90 mm | 1 1/8 - 3 1/2"
Collation degrees
15°
Finish
Aericote® 1000
Material
High Carbon Steel
Nailpoint
sharp pin point
Shank
knurled, smooth
Scrail
Thread type
Steelthread
Collation type
Plastic Sheet Coil
Inner diameter
2.5 - 3.2 mm | .100" - .126""
Outer diameter
2.8 - 3.8 mm | .113" - .150""
Length
45 - 90 mm | 1 3/4 - 3 1/2"
Drive type
Torx®
Coil capacity
200 - 300
Head type
Countersunk head
Finish
electro-galvanized
Material
Standard steel
Collation degrees
15°
Tool
Fastener type
BECK CN-AG Plastic Sheet Coil SCRAIL®, ASM-144 & AKN-144 Pins
Magazine capacity
200 -300
Nail length
28 - 90 mm | 1 1/8 - 3 1/2"
Scrail length
45 - 90 mm | 1 3/4 - 3 1/2"
Height
387 mm | 15.24"
Width
142 mm | 5.6"
Length
369 mm | 14.53"
Weight
3.95 kg | 8.7 lbs
Pressure
5 - 8 bar | 70 - 120 psi
Actuation system
Full Sequential Actuation
Loading
coil
System
Brand
ET&F®
Applications
Steel framing
Siding
Drywall
Flooring & subflooring
