AKN-100-XXXXNA PLASTIC COIL STEEL FRAMING PINS

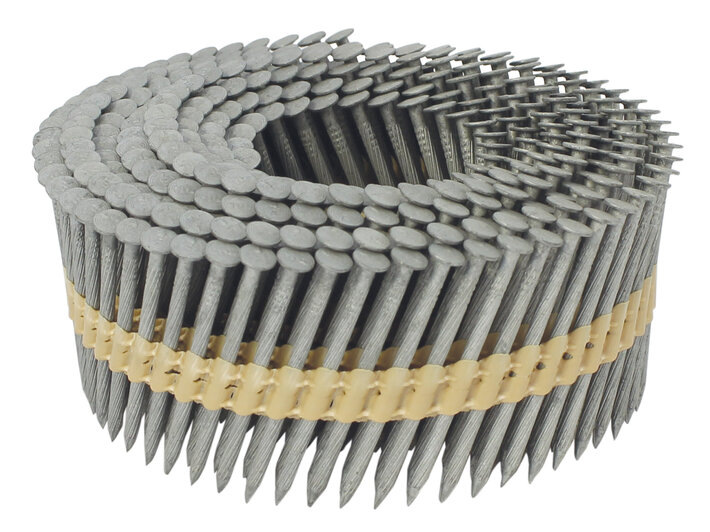

The STEEL FRAMING PINS AKN-100-XXXXNA series pins are designed specially for the 500 tool to attach plywood, oriented strand board (OSB), fiber cement siding and soffit to light gauge steel from 68 mil (14 GA.) to 27 mil (22 GA.). These pins are finished with Aericote® 1000 coating which provides ten times the corrosion protection of electroplated zinc. Unlike wire collation, the plastic coil collation eliminates finish burn-through which initiates corrosion

  • Refer to IAPMO UES ER-335 for design values for horizontal diaphragm and shear wall construction and ICC Reports ESR-1844, ESR-2273 and ESR-2290 for design values for use face nailing James Hardie fiber cement and soffit.
Request product

Product variants

Technical data

Head type
flat head
Collation type
Plastic Rope Coil
Diameter
2.6 mm | 0.102"
Length
38 - 63 mm | 1 1/2 - 2 1/2"
Coil shape
conical RBC
Collation degrees
20°
Finish
Aericote® 1000
Material
High Carbon Steel
Nailpoint
sharp pin point
Shank
knurled
ET&F® tool

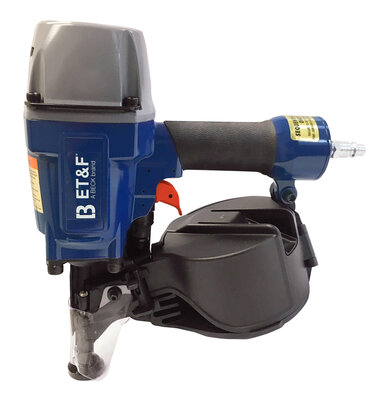

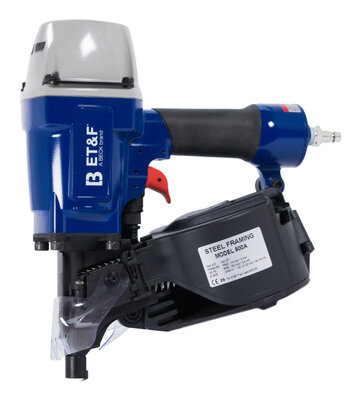

STEEL FRAMING MODEL 500A, STUCCOFAST® SYSTEM MODEL 500MA

Applications

icon
Drywall
icon
Steel framing

Standards and test marks

IAPMO ER-335

This evaluation report recognizes ET&F® pneumatic pins used to attach wood structural panel sheathing to cold formed steel framing of 20ga to 10ga thickness for horizontal diaphragm construction. Withdrawal and lateral strength design values are also provided for individual pins.

ESR 1844

This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement HardiePanel® siding, manufactured by the James Hardie Building Products, to light gauge steel framing.

ESR 2273

This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement Hardiesoffit® Vented Plus™ manufactured by James Hardie Building Products to light gauge steel framing.

ESR 2290

This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement HardiePlank® siding, manufactured by the James Hardie Building Products, to light gauge steel framing and to concrete masonry units.

AKN-100-XXXXNA PLASTIC COIL STEEL FRAMING PINS
  Head type Collation type Diameter Length Coil capacity Coil shape Collation degrees Finish Material Nailpoint Shank ET&F® tool
AKN1000150-NA flat head Plastic Rope Coil 2.5 mm | 0.098" 38 mm | 1 1/2" 300 conical RBC 21° Aericote® 1000 High Carbon Steel sharp pin point knurled MODEL 500
AKN1000200-NA flat head Plastic Rope Coil 2.5 mm | 0.098" 50 mm | 2" 300 conical RBC 21° Aericote® 1000 High Carbon Steel sharp pin point knurled MODEL 500
AKN1000250-NA flat head Plastic Rope Coil 2.5 mm | 0.098" 63 mm | 2 1/2" 300 conical RBC 21° Aericote® 1000 High Carbon Steel sharp pin point knurled MODEL 500
